Clean-Roll®

Benefits

• Engineered to meet USDA hygienic standards for meat, poultry, dairy and seafood applications.
• Designed for complete wash-down while innovative engineering prevents liquid contaminants from dripping into the traffic pathway, improving productivity.
• USDA/FDA-compliant design virtually eliminates potential sites for germ manifestation.
• High-speed operation, up to 50 inches per second, helps maintain a safe, controlled environment.

Safety

• Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
• A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
• Ry-Wi^® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

Construction

• Constructed of USDA- and FDA-compliant materials
• Low profile stainless steel side columns with removable covers
• Stainless steel roll drum with stainless steel piano hinge
• Drum rotates to expose panel hinges for complete cleaning
• Hinged drip guard at the head of the door
• Sloped gutter system on bottom bar
• Clean-Set™ Break-Away™ stainless clad bottom bar

Options

• Blue or white USDA-compliant door panel
• Bolt-on stainless steel wind ribs

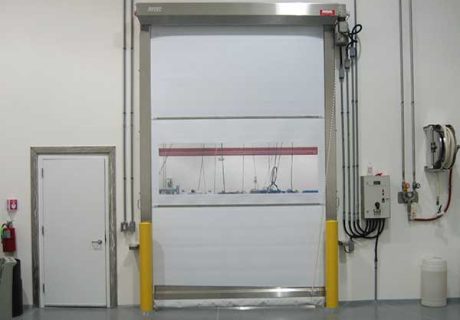

• Vulcanized vision window(s)
• Counterweighted lift-assist system
• Drip-Safe™ guard is an automatic pneumatic drip-catch tray that moves under the roll drum when the door opens. This enables fragile food cargoes to safely move through the doorway.
