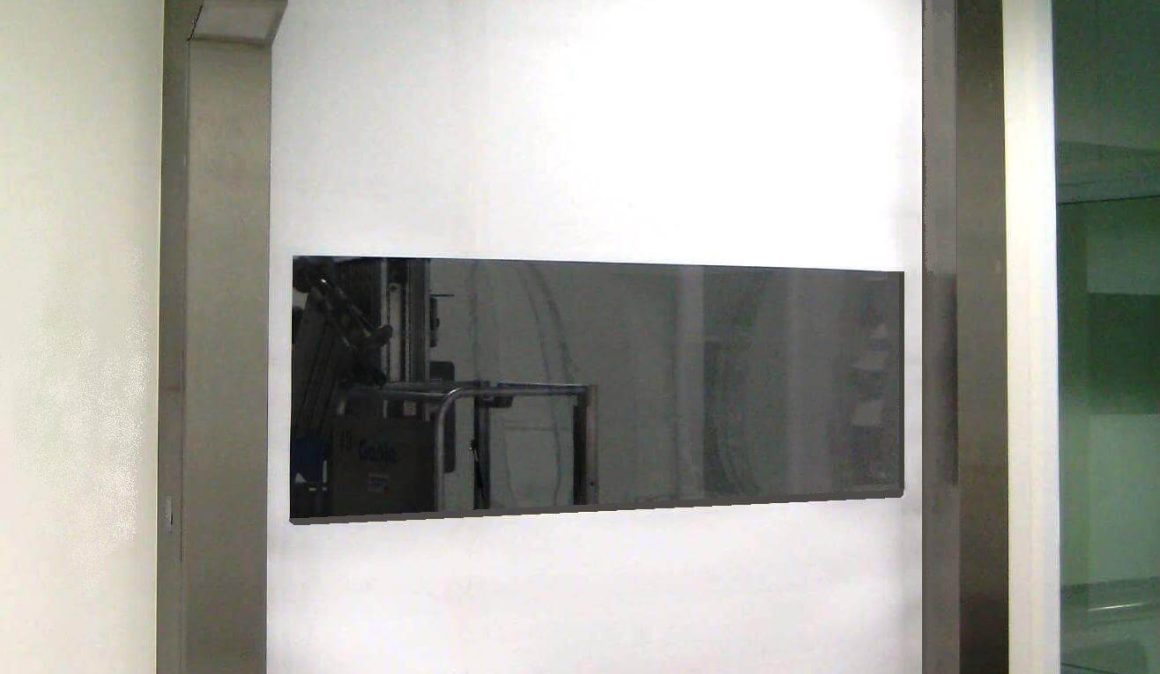

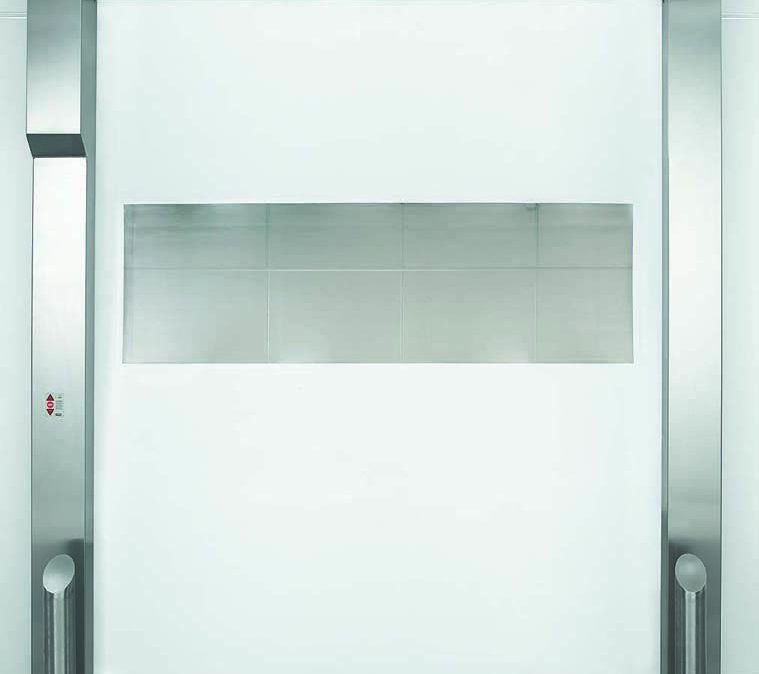

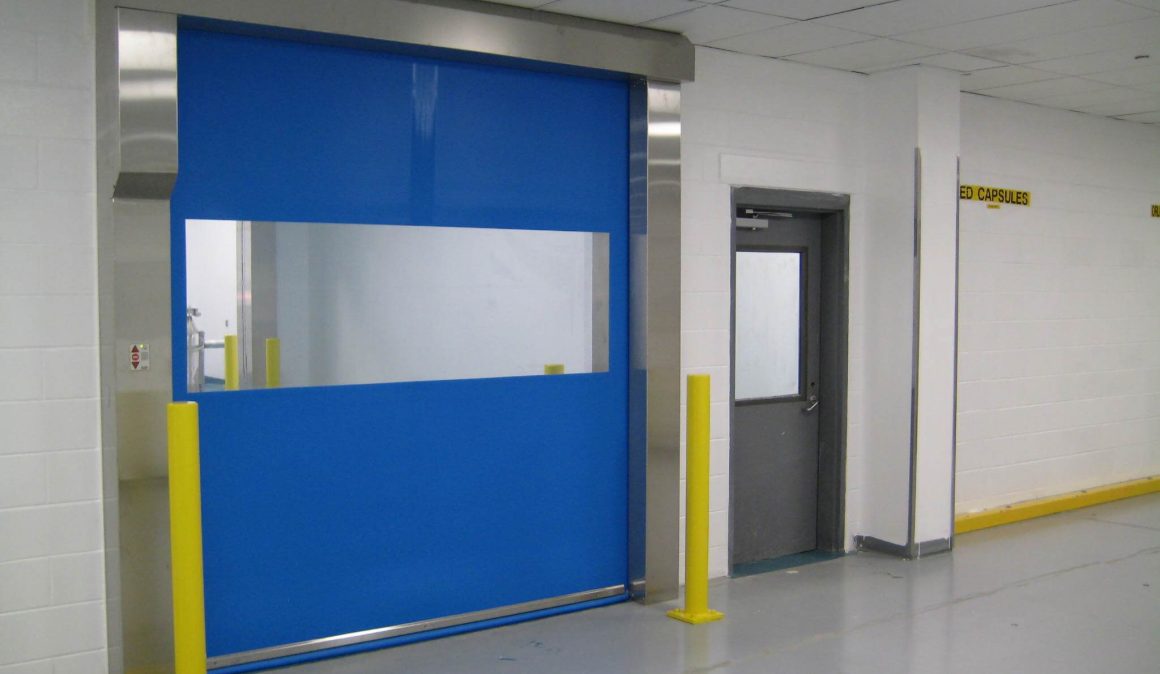

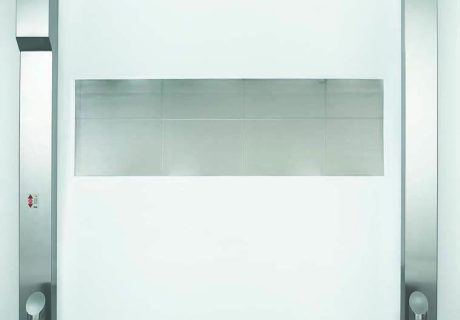

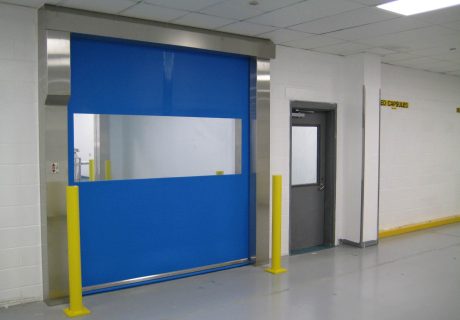

Pharma-Seal®

As the ideal pharmaceutical door, the Pharma-Seal is also suited for food and beverage processing applications, and can be built up to 10′ wide x 10′ high.

Pharma-Seal® High-Performance Door

Engineered to comply with cGMP guidelines – while maintaining pressure differentials – the Pharma-Seal is the tightest sealing, most reliable, high-performance pharmaceutical clean room door available. The simple design is fully enclosed with stainless steel side columns and head assembly without any external parts, making it easy to clean. Engineered for pharmaceutical environments a flush membrane switch and flush manual release handle are standard. Hands free wave-to-open options are available.

more Pharma-Seal® details

Benefits

  • With only a 3/8-inch gap for the door panel, hidden wind knobs seal the perimeter and withstand negative pressure.
  • Variable speed AC drive enables opening speeds up to 50 inches per second and provides uninterrupted facility operations.
  • Using all USDA/FDA-compliant materials, the Pharma-Seal is engineered to provide unprecedented reliability in class-rated environments.


Safety

  • ‘Intelligent’ Advanced3 Light Curtain Safety System continuously monitors door opening.
  • Persons or objects entering the opening will cause the door to reverse without contact.

Options

  • 316 stainless steel head and side frames
  • Vulcanized vision window

Construction

  • USDA/FDA-compliant, 2-ply door panel
  • Fully-enclosed 304 stainless steel side frames with removable covers
  • Stainless steel hood assembly
  • Stainless clad bottom bar with loop seal
  • Flush mounted manual release
