  • Plexline®

back to High Performance Industrial Doors garage doors

Plexline®

Ideal for cold storage, food and beverage, manufacturing and warehousing applications, the Plexline can be built up to 16′ wide x 15′ high.

contact us about this product

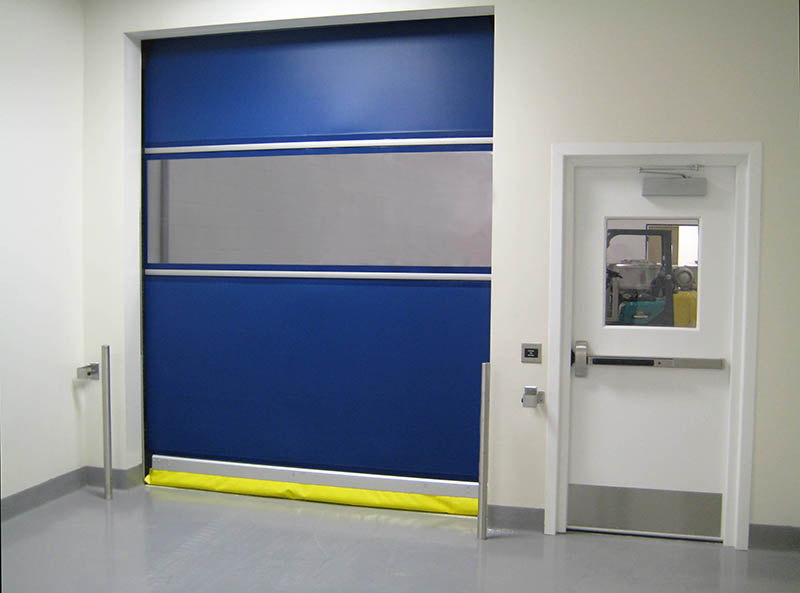

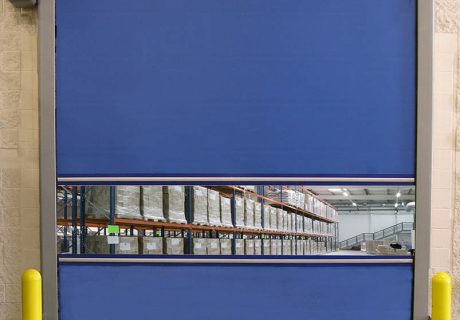

Plexline® High-Performance Door

Combining the high performance of composite materials with the benefits of Rytec high-speed doors, the Plexline is designed for high-traffic, interior applications where durability, speed, and visual impact are paramount. The fiberglass composite materials offer strength, long life, and the durability of stainless steel, at a remarkably low price.

more Plexline® details

Benefits

  • Quick-Set™ repair system allows the operator to reset the door with the push of a button after aligning the bottom bar.
  • Corrosion and chemical-resistant side frames are easy to clean and more impact-resistant than stainless steel.
  • Direct-drive motor opens the door at up to 50 inches per second for improved traffic flow, productivity and energy conservation.

Safety

  • Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
  • Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
  • A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
  • Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

Construction

  • 2-ply door panel sections with integrated wind ribs
  • Full-width, replaceable vision panel
  • Fiberglass composite side frames
  • Front and rear full-height brush seals
  • Extruded aluminum break-away bottom bar
  • Vinyl loop seal on bottom bar

Options

  • 3-ply, USDA/FDA-compliant or tear-resistant vinyl door panel
  • Composite or aluminum hood and motor cover
  • Fiberglass wind ribs
  • IP65 Severe-duty motor
  • Stainless steel-clad bottom bar
  • Vinyl weatherseals
  • Optional counterweighted lift-assist system

Document Resources

Manuals

Drawings
