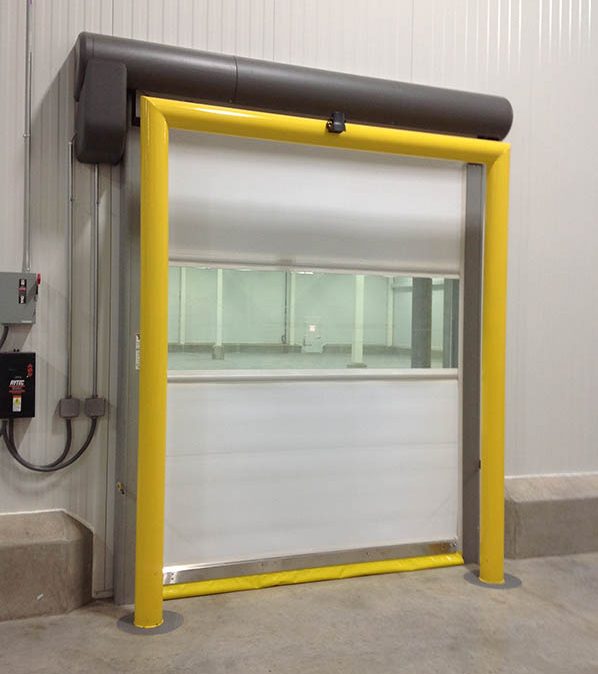

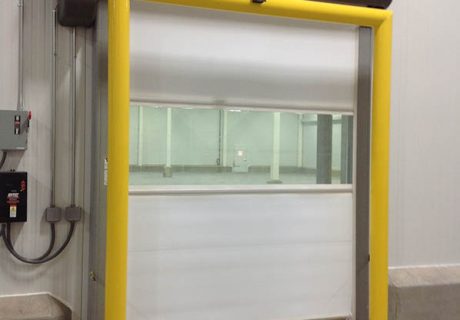

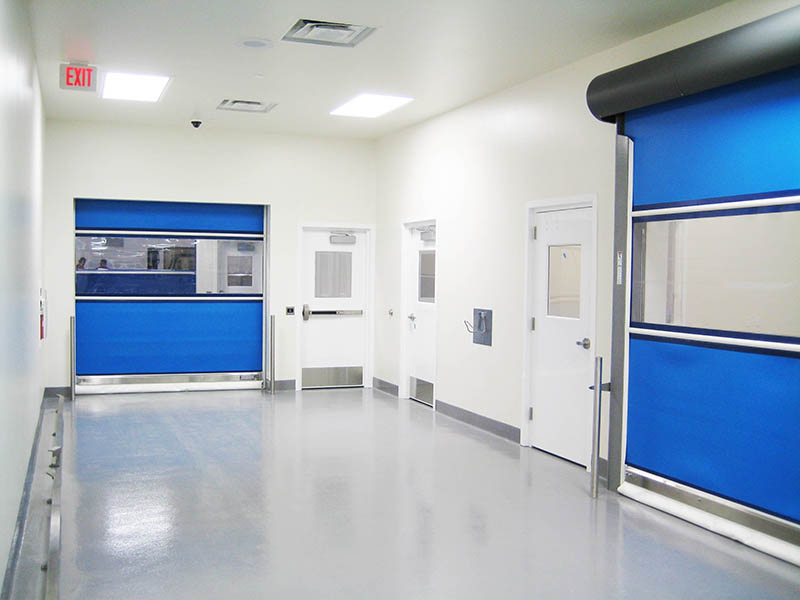

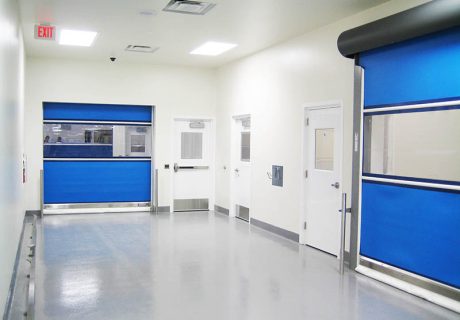

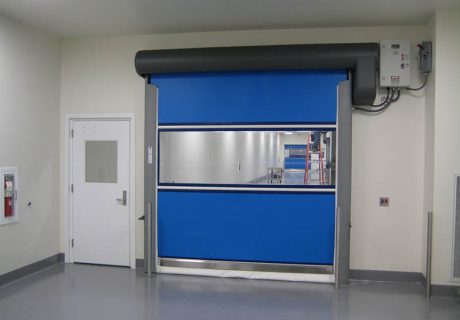

Plexline® Clean

Benefits

• USDA door components ensure compliance and allow for easy cleaning.
• Easy-to-clean composite material is corrosion-resistant, chemical-resistant and offers comparable aesthetics to stainless steel.
• Quickly contain and separate environments with door opening speeds up to 50 inches per second.

Safety

• Intuitive and Customizable Pathwatch^® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
• Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
• A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
• Ry-Wi^® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

Construction

• USDA-compliant door panel sections
• Integrated fiberglass wind ribs
• Full-width, replaceable vision panel
• Fiberglass composite side frames
• Front and rear full-height vinyl seals
• Stainless steel-clad break-away bottom bar
• Vinyl loop seal on bottom bar

Options

• USDA/FDA-compliant door panel is available in blue or white
• Composite hood and motor cover
• IP65 Severe-duty motor
• Optional counterweighted lift-assist system

Document Resources

Product Sheets

•  Plexline Clean Product Information Sheet
• Plexline Clean Product Info. Sheet (French Can.)
• Plexline Clean Product Info. Sheet (Spanish)

Manuals

• Plexline Owner’s Manual
• Plexline Installation Manual

Drawings

• Plexline Architectural Drawing
• Plexline with Hood Architectural Drawing
