JDC

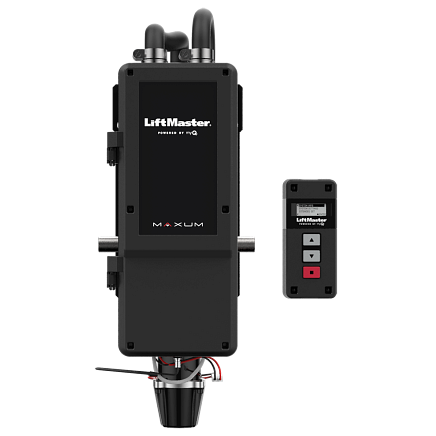

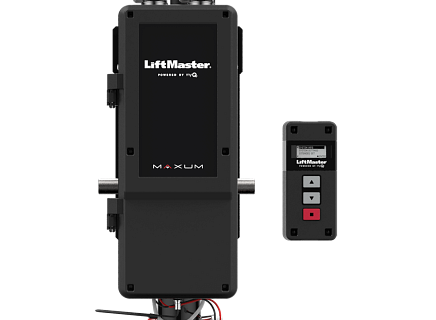

Motor and Gearbox purpose built to meet the high demands of commercial applications. 3-button control with 4-line LCD display for setup and programming from the floor level. Up to 33% faster than standard commercial door operators, allowing you to get shipments in and out quickly. Average speed is 12” per second.

contact us about this product

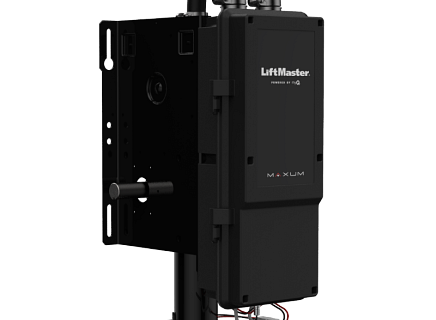

MAXUM DC Jackshaft Commercial Door Operator

Battery Backup helps keep your door running even when the power goes out—ensuring safe and continuous operation. Diagnostics at floor level through myQ® Facility on your mobile device allows you to see when there is a problem and anticipate maintenance cycles. Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations. Security+ 2.0® virtually eliminates radio wave interference and offers extended range.

more JDC details

Overview

Features

Fast

At an average speed of 12” per second, the operator quickly opens doors to help your business stay efficient and profitable. Plus, the floor LCD display allows you to easily track your maintenance schedule—reducing downtime.

Smart

Soft-start & Soft-stop gives the operator a longer lifespan while Battery Backup ensures that it will keep running—even in a power outage. With embedded Wi-Fi connectivity out the of box, you can use myQ Facility software to access data and analytics to improve your business.

Simple

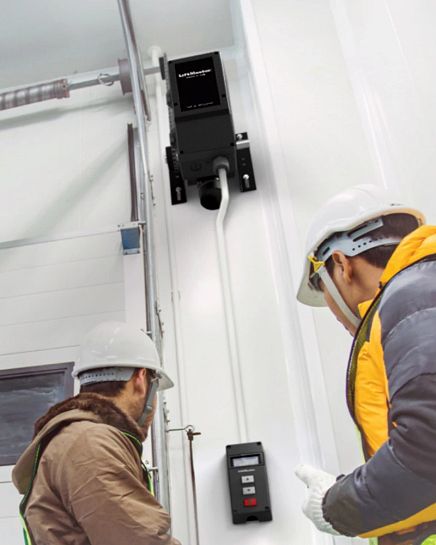

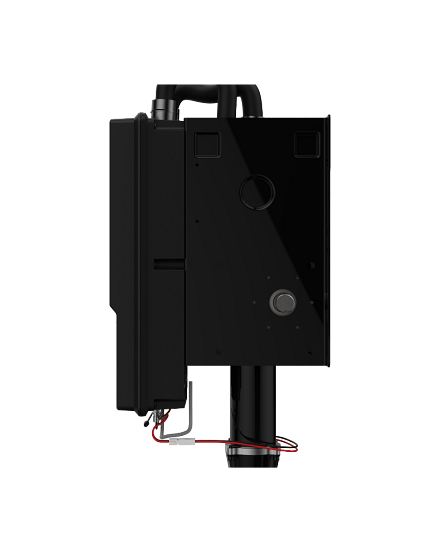

Floor-level wall control makes the operator easier to control and check for preventative maintenance. The modular design enables both right and left-side mounting with a single unit—making the operator flexible to the needs of your application.

myQ Connectivity

Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.

Diagnostics

With myQ Diagnostics you can know your maintenance schedule and be alerted when there is a problem to reduce time on tools and increase safety.

Specs

Soft Start / Stop

Yes

myQ Compatibility

Works with myQ, myQ Facility, or myQ Enterprise

Power

120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer accessory

Wi-Fi

Yes

Battery Backup

Yes, with included DC45AH Battery Backup kit

Monitored Safety Inputs

3 Inputs

Duty Cycle Per Hour p/h & Per Day p/d

Standard - 20 cycles p/h /90 p/d | Extended - 30 cycles p/h /150 p/d

Speed/Per Second

Faster speed,12” on average for sectional and 8–9 inches for rolling steel doors

Radio Receiver

Security + 2.0

Motor Type

24VDC Motor Drive

Dual handing for installs

Right or left no longer required for order

Warranty

Standard Duty - 2 to 5 Years, or 85,000 Cycle Extended Duty - 2 to 5 Years, or 130,000 Cycles

What is included

CPS-U

CPS-U

Commercial Photo Eyes

Learn More

Installation & Support

Sell Sheets

Manual

General Documents

Architect Documents

Compatible Accessories




RGL-CTL Red - Green Light

RGL-CTL

Hi-Intensity Red/Green Traffic Light

Learn More

Light Curtain

LC36M

Monitored Light Curtain

Learn More

LMWEKITU Monitored Wireless Edge Kit HERO

LMWEKITU

Monitored Wireless Edge Kit

Learn More

LOOPDETLM Plug In Loop Detector HERO

LOOPDETLM

Plug In Loop Detector

Learn More
