Majestic Views, Elegant Style

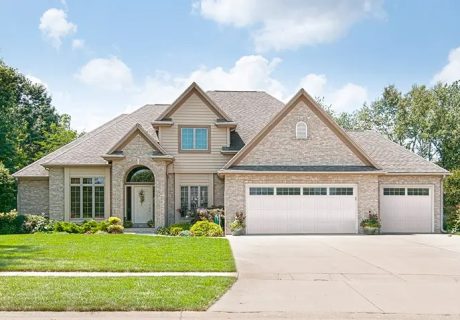

The Raynor Aspen AP200LV LuxeVue steel residential garage door is built with a 24″ top section to showcase our beautiful selection of extra-large, deluxe windows. Exceptional quality and the opportunity to create many different looks with a wide variety of panel styles make the Raynor LuxeVue a perfect choice for a pristine, high-end-looking garage front. Step out of the ordinary and compliment your home’s aesthetic features with a Raynor LuxeVue garage door.
Beautiful and rugged, Raynor Aspen AP200LV LuxeVue steel residential garage doors have the following features and options homeowners and home buyers are looking for in a door:
Start creating a beautiful, customized Raynor Aspen LuxeVue garage door design that fits your style by selecting from one of our many color options. Deep, distinct embossing creates a sharp and detailed-looking door front. Classic, or contemporary, Raynor garage doors look high definition.
*Features the high performance PVDF coating (TRINAR® or equivalent) paint process that provides extended UV protection against fading.
Raynor’s ColorWave™ features Sherwin-Williams® next-generation post paint system for your garage door. With 1,500 colors to choose from, home and business owners can couple this elite paint system with state-of-the-art Raynor manufacturing to craft the perfect look for their home or project.
* Not all colors are available in solar reflective paint, colors that are not available as solar reflective cannot be used on polyurethane doors.
>>Not all colors are available on all embossments. Contact your local Raynor Authorized Dealer for a complete listing of colors available by embossment.
>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual steel color. Contact your local Raynor Authorized Dealer for color samples.
Choose from seven Raynor Aspen AP200LV LuxeVue steel garage door panel designs to give your home a custom and unique look.
Add character to your Raynor Aspen AP200LV steel garage door with attractive optional decorative face hardware. The black matte powder coated magnetic straps and handles are designed to appear hand-forged, adding a historically accurate dimensional quality to your door. Our lightweight and durable magnetic decorative hardware offering instantly add character and charm to any steel garage door! These accessories come with an authentic wrought iron look and are easy to install! Mount your hardware quickly and easily as many times as you need to without the worry of leaving holes from traditional drilling installations. Put the finishing touches on your new Raynor Aspen AP200LV garage door, today!
Upgrade Your Vue and See the Difference! LuxeVue windows offer 20% “more window” over our traditional ranch size windows to let more natural light in. Choose clear, satin, or obscure pinhead glass styles.
Series | Aspen steel garage doors |
Level | Deluxe |
Max Door Width | 18’2” (18’2” in commercial sizes) |
Max Door Height | 10’0” (16’0” in commercial sizes) |
Construction | 3-Layer (Steel, Insulation, Steel) |
Section Thickness | 2″ |
Material | Hot-Dipped Galvanized Steel; 26-gauge |
Surface Texture | Woodgrain |
Insulation | NeuFoam™ Polyurethane |
Tested U-Factor | 0.17 |
Calculated R-Value | 18.0 |
Thermal Break | Yes, full length |
Section Joint Seal | Yes, full length |
Section Joint Type | Raynor WeatherLock, Tongue-in-Groove |
Door Designs | Raised Colonial, Raised Ranch, Recessed Colonial Grooved, Recessed Ranch Grooved, Recessed Ranch, Flush, Plank |
Colors | White, Almond, Desert Tan, Sandstone, Bronze, Brown, Charcoal, Iron Ore, Slate, Black, Dual Design Cocoa Hickory, Dual Design Honey Cedar, Plank Design Cocoa Hickory, Plank Design Honey Cedar, ColorWave™ |
Glass | Clear, Satin, and Obscure |
Decorative Windows | Wrought Iron, Wrought Iron 2pc Arched, 4 Pane, 4 Pane 2pc Arched, 4 Over 4 Square, 4 Over 4 2pc Arched, Square, 2pc Arched, PeakView, Mission, Springline, Revival Arch |
Track & Door Hardware | Galvanized or Powdercoat available |
Wind Load Systems | FBC: Yes TDI: No HVHZ: No |
Single Family Residential Warranty*: *Limitations and Exclusions May Apply | Sections: Limited Lifetime Galvanized Track & Hardware: 6 years Powdercoated Track & Hardware: Limited Lifetime Springs: 3 years Powdercoated Springs: Limited Lifetime Windows: 3 years Climate Seal: 1 year Windload Doors: 3 years ColorWave™: 5 years |
Single Family Residential: Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust (exterior only) for as long as the original purchaser owns the home. Raynor also warrants the door sections against delamination of the polyurethane foam insulation from the steel skins for as long as the original purchaser owns the home. Window components are warranted against defects in material and workmanship for three (3) years from date of delivery to the original purchaser. Climate seal is warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
All Other Residential (including installation on rental properties, homes owned by common condominiums associations or similar organizations): Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust (exterior only) for three (3) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polyurethane foam insulation from the steel skins for three (3) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for three (3) years from date of delivery to the original purchaser. Climate seal is warranted against defects in material and workmanship for (1) year from date of delivery to the original purchaser.
Single Family Residential: EnduraCote™ Hardware: Raynor® warrants all hardware and spring components against defects in material and workmanship for as long as the original purchaser owns the home
Galvanized Hardware: Raynor® warrants all hardware components against defects in material and workmanship for six (6) years and springs for three (3) years from date of delivery to the original purchaser.
Raynor Wind Load systems are warranted against defects in material and workmanship for three (3) years from date of delivery to the original purchaser.
All Other Residential (including installation on rental properties, homes owned by common condominiums associations or similar organizations):EnduraCote™ Hardware: Raynor® warrants all hardware and spring components against defects in material and workmanship for three (3) years from date of delivery to the original purchaser.
Galvanized Hardware: Raynor® warrants all hardware and spring components against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
ColorWave™ Paint System Raynor provides a five-year warranty for the ColorWave Paint System (exterior only) against chipping, cracking, and peeling (loss of adhesion) from the date of delivery to the original purchaser. This warranty covers defects in materials and workmanship under normal use and proper maintenance. Please note that fading, as well as chipping, cracking, or peeling caused by dents or scratches, are not included in this coverage. Additionally, for doors made with polyurethane insulation, a solar reflective paint formulation is required to maintain the warranty. Ordering a color that does not meet this requirement will void the warranty for the ColorWave Paint System. Field applied paint is not covered by this warranty. This warranty applies only to the original purchaser and may be subject to inspection before approval of any claim.
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.
This limited warranty extends only to the original purchaser, provided the door is installed in his/her place of residence. This limited warranty is not transferable. This limited warranty applies to residential property only and is not valid on commercial applications or commercial use from a private residence.
This limited warranty does not apply to automated parking control systems for multiple-tenant parking applications.
This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor Aspen Series, Commercial Aspen Series, Country Manor, and RockCreeke doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.
This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.
This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.
This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.
Raynor will not be responsible for paint rub on installed doors in any openings. Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
Your registration enforces your warranty coverage and will keep you up to date on product information and offers. Register your Raynor Aspen AP200LV LuxeVue warranty here.
